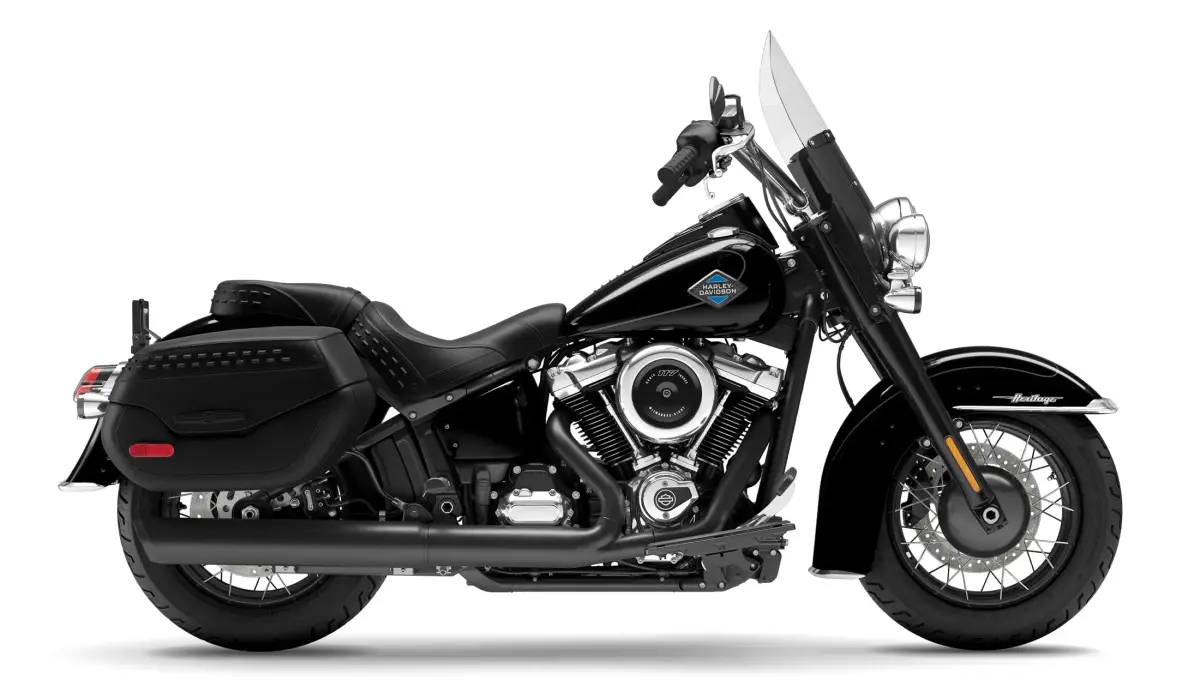

‹ Home › Inventory › 2025 Harley-Davidson® Heritage Classic

Classic cruiser vibes meet hot rod swagger—the Heritage Classic lets you switch things up fast, giving you the versatility to roll out for a weekend trip or strip it down for a laid-back ride around town.

Specifications

Dimensions

add remove
- Length:

  95.1 in
- Seat height, unladen:

  26.8 in
- Ground clearance:

  4.7 in
- Rake (steering head):

  30
- Trail:

  5.5 in
- Wheelbase:

  64.2 in
- Tires, front specifications:

  130/90B16,73H,BW
- Tires, rear specifications:

  150/80B16,77H,BW
- Fuel Capacity:

  5.0 gal
- Oil capacity:

  5 qt.
- Weight, as shipped:

  697 lbs
- Weight, in running order:

  728 lb
- Luggage capacity – volume:

  1.6 cu ft (0.045 m3)
- Tire, type:

  Dunlop® Harley-Davidson Series, bias blackwall front and rear
Engine

add remove
- Engine:

  Milwaukee-Eight® 117 Classic
- Bore:

  4.1 in
- Stroke:

  4.5 in
- Displacement:

  117.35 in³
- Compression ratio:

  10.3:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-into-1; catalyst in header
Performance

add remove
- Engine torque testing method:

  EC 134/2014
- Engine torque:

  120.2 ft-lb
- Engine torque (RPM):

  2500
- Horsepower:

  98 HP / 73 kW @ 4600 rpm
- Lean angle, right (deg.):

  27.4
- Lean angle, left (deg.):

  27.4
- Fuel economy testing method:

  EU 134/2014
- Fuel economy:

  47 mpg (5 l/100km)
Powertrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.311
- Gear ratios (overall) 2nd:

  6.454
- Gear ratios (overall) 3rd:

  4.793
- Gear ratios (overall) 4th:

  3.882
- Gear ratios (overall) 5th:

  3.307
- Gear Ratios (overall) 6th:

  2.79
Chassis

add remove
- Front fork:

  Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring; "beer can" covers
- Rear shocks:

  Hidden, free piston, coil-over monoshock; 56mm stroke; hydraulic preload adjustment
- Wheels, front type:

  Black, 9-Spoke Cast Aluminum
- Wheels, rear type:

  Black, 9-Spoke Cast Aluminum
- Brakes, type:

  Solid, uniform expansion rotors
- Brakes, caliper type:

  4-piston fixed front and 2-piston floating rear
